Dilution Systems

Dilution of gases, mixtures and conventional exhaust.

VITROCELL® has developed specific dynamic dilution systems using unique double-jet systems which allow for a homogeneous mixing of the test aerosol with air.

This principle facilitates highly flexible dose/response relationships. The dilution systems are made of PTFE or stainless steel with unique VITROGLIDE surface treatment.

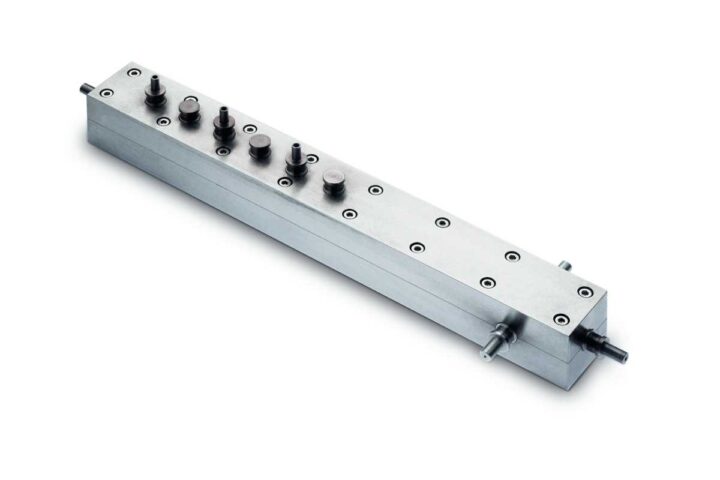

Universal dilution system for VITROCELL® 6 and 12 module family

This universal dilution system has entry and exit nozzles for the aerosol stream plus 2 jets for air. 3 or 4 fittings lead to the VITROCELL® module inlets. The inlets aspirate the required dose from the constant flow of diluted test substance through the dilution system.

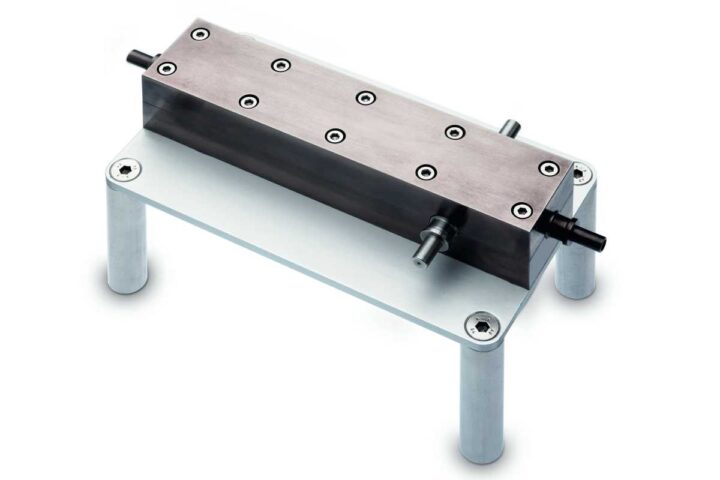

Single dilution system for VITROCELL® HD Distribution Systems

The dilution system has entry and exit nozzles for the aerosol stream plus 2 jets for air. The exit fitting is connected to the entry nozzle of the VITROCELL® HD Distribution System and the aerosol is then further distributed to the module.

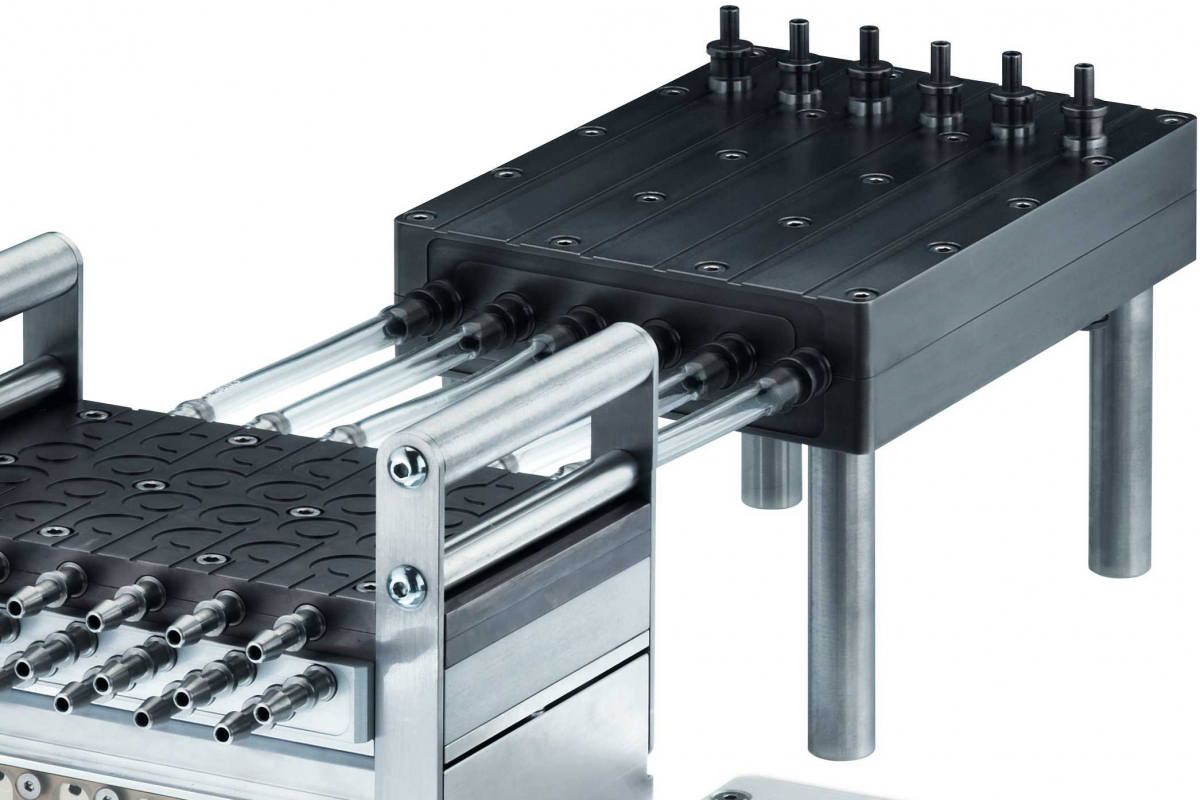

6-fold dilution system for VITROCELL® 24

The dilution system has entry and exit nozzles for 6 different aerosol streams. Each of which has 2 jets for air. Their exit fittings are connected to the 6 entry fittings of the VITROCELL® 24 module and the aerosol is then further distributed in the module.

Features

    • Dilution of the test substances for greater variation of doses
    • Unique double-jet system for superior mixing results
    • Material: stainless steel with unique VITROGLIDE surface treatment to minimize deposition

Videos

VITROCELL® Dynamic Dilution System
