VITROCELL® Skin Max Module

Module with exposure surface area of 4.9 cm2


Specifically engineered for the exposure of tissue to compounds.

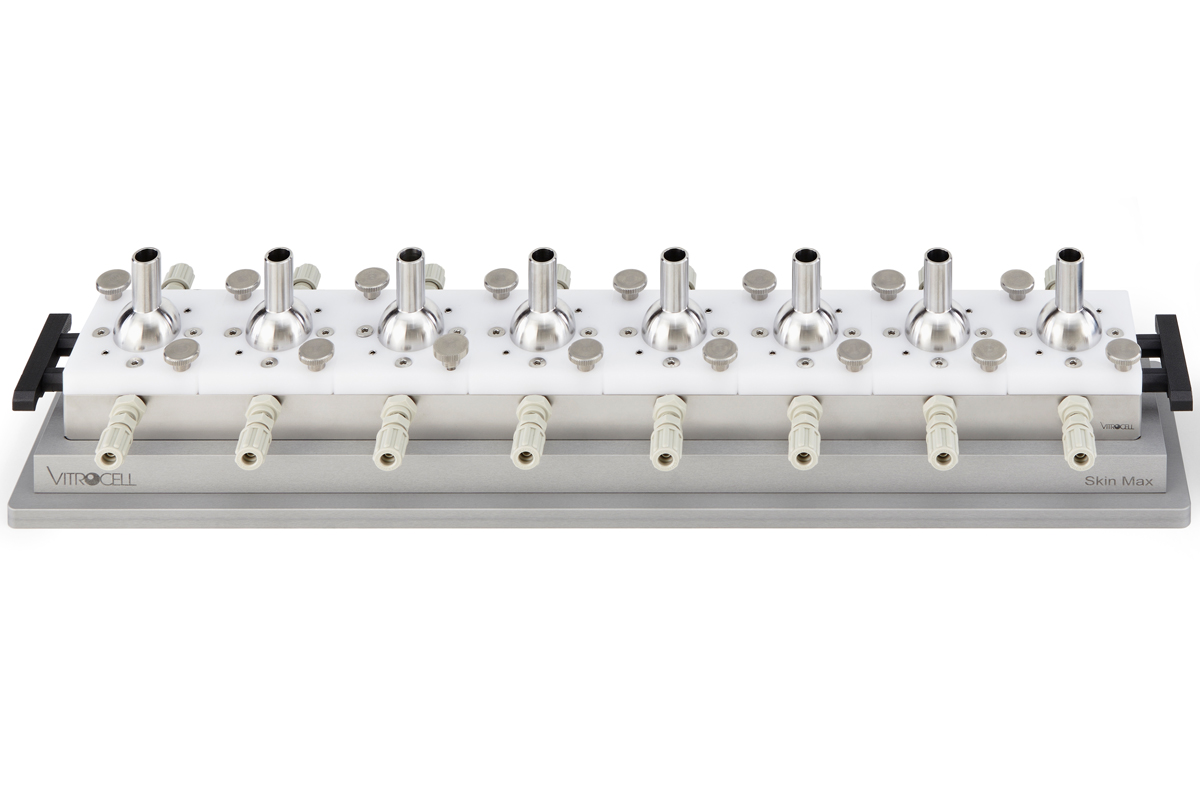

The VITROCELL® Skin Max module is a unique system with 8 chambers for tissue exposure. The base module and covers are made of high-quality stainless steel. This module is a superior alternative to Franz cells.

For automation of the sampling process please refer to the VITROCELL Skin Autosampler.

More about VITROCELL Skin Max Module

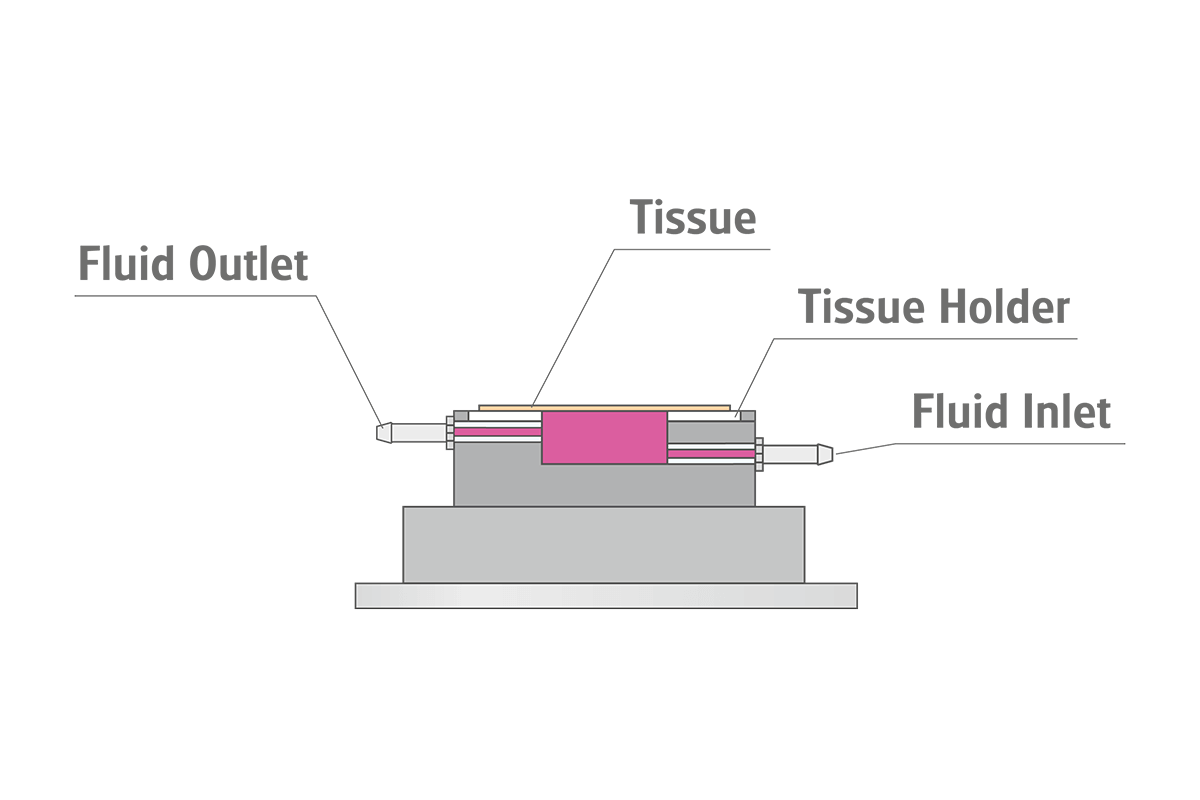

Skin Max module illustration

The skin module is used for samples with a surface smaller than approx 4.9 cm2. The unique tissue holders have been specifically designed to enable tight and reliable skin fixation. Alternatively, cell culture inserts may be used.

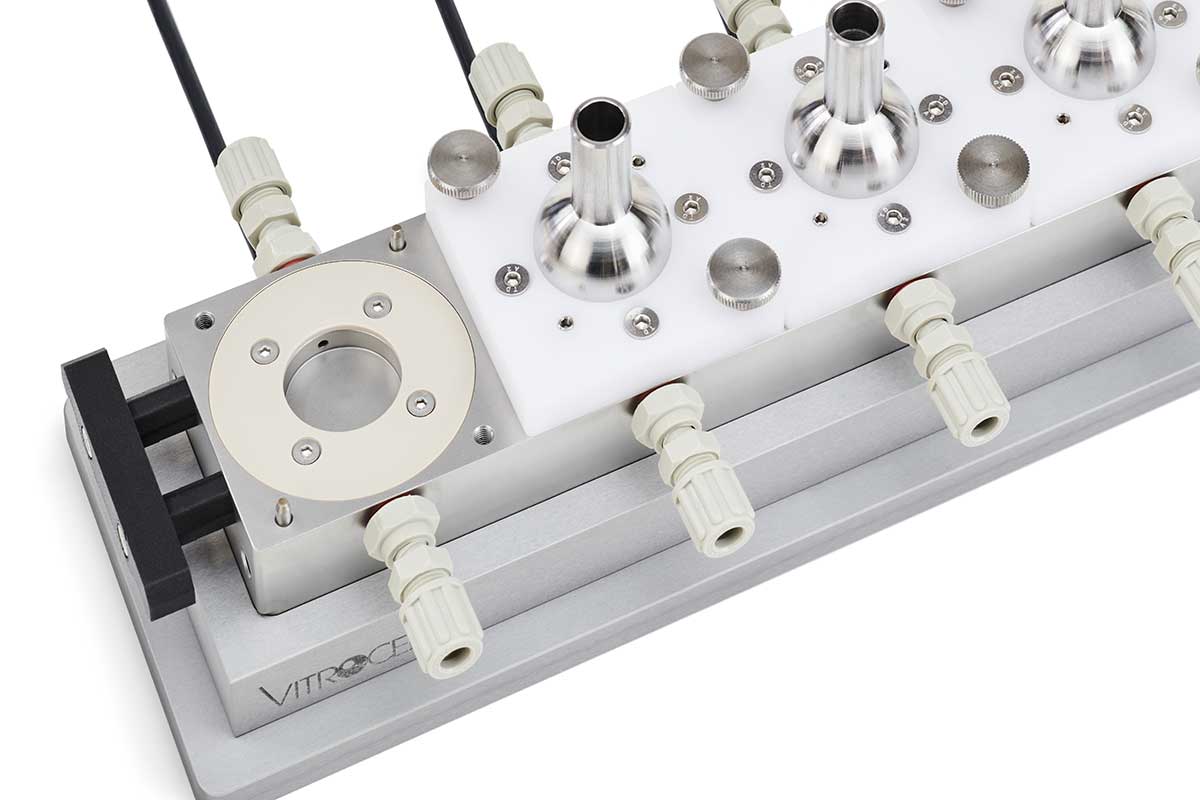

Skin Max module compartment

The standard volume for receptor medium is 4 ml. The receptor fluid can be manually or automatically sampled by means of the VITROCELL Skin Autosampler.

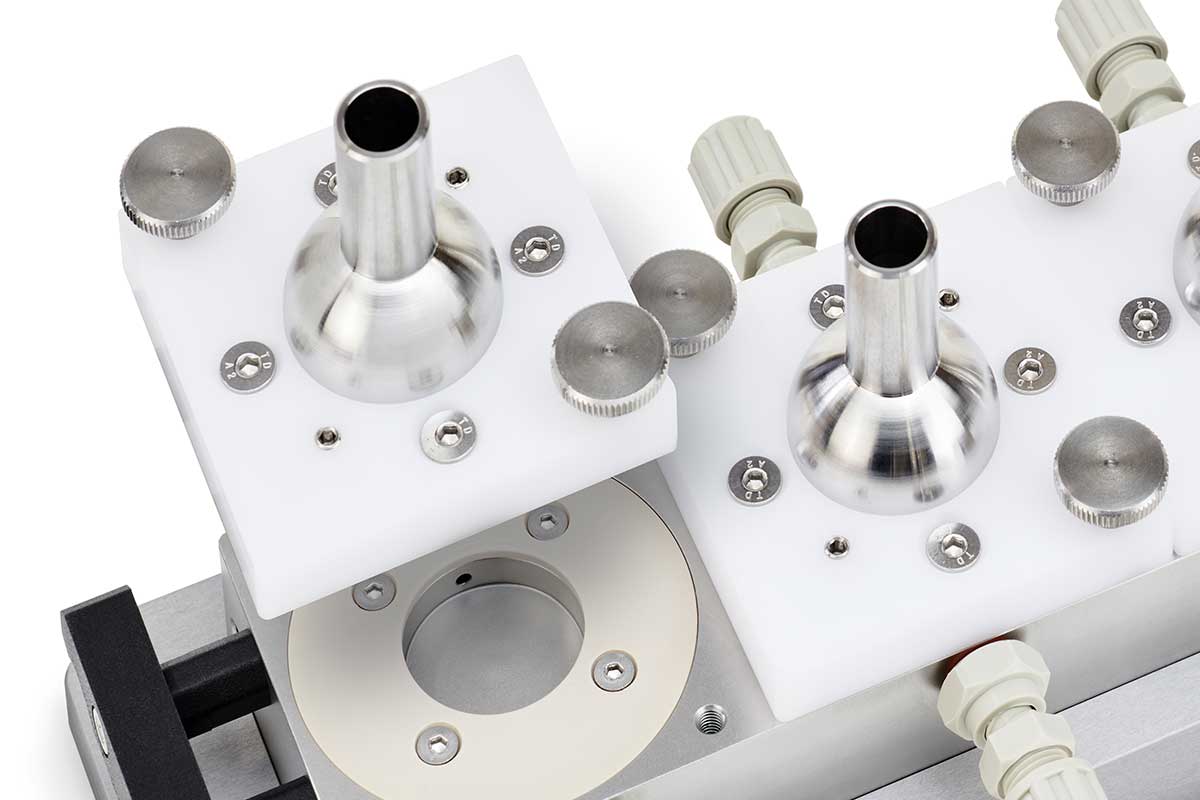

Skin Max module cover fixation bracket

The skin sample can be fixed using specific fixation brackets. The cover domes ensure a reduction in evaporation.

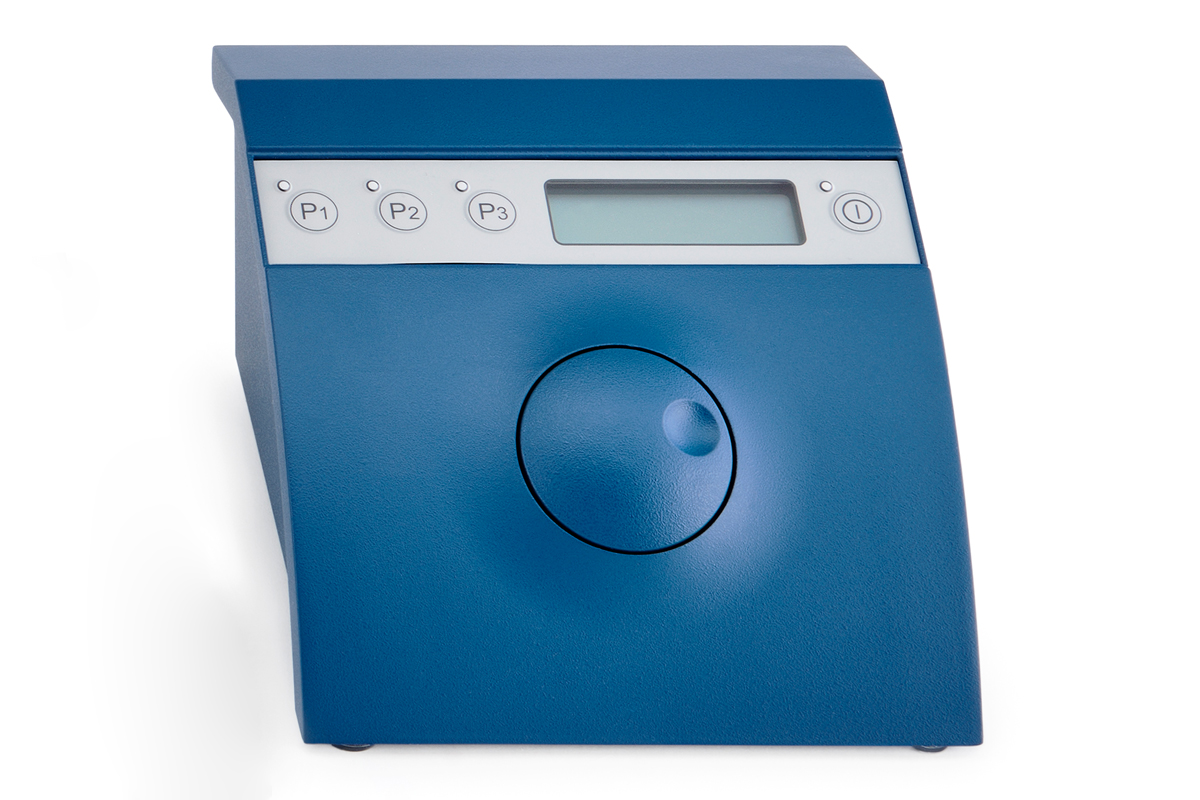

Skin Max Controller

Controller for magnetic stirrers.

Features

  • Durable and long lasting design
  • Permanent or static medium supply
  • Integrated water bath heating circuit
  • Suitable for various tissue thicknesses
  • Tissue diameter: 50 mm
  • Tissue exposure surface diameter: 25 mm
  • Option: magnetic stirrers
