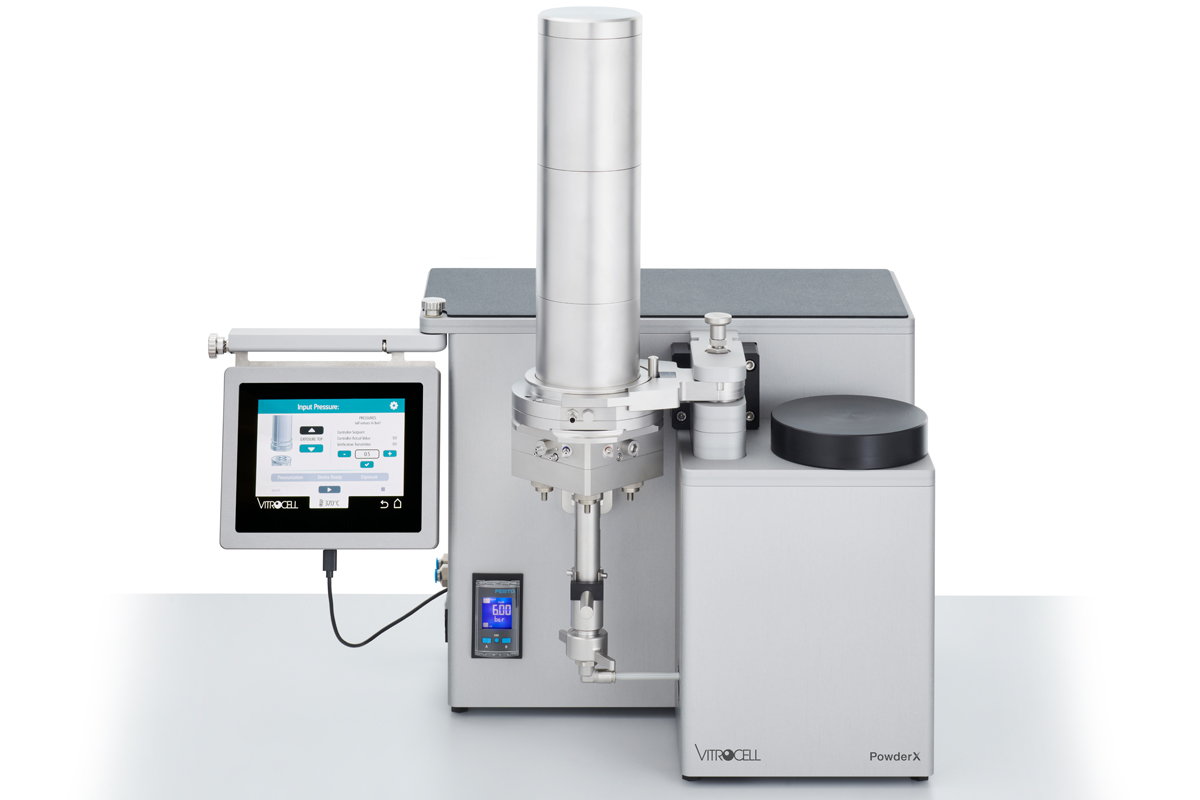

For cell culture exposure to smallest ­quantities of dry powders

PowderX allows for aerosolisation of small quantities of dry powders (1-100 mg) and particle deposition on cells cultured on 12- or 24-well sized inserts.

The system features biological barrier integration and continuous sampling from the basolateral compartment.

Working Principle

  • Powder sample is placed in quick-lock loading system.
  • Expansion chamber and base module are tightly sealed by touchscreen operation.
  • Powder sample is aerosolized under high pressure to break up agglomerates for homogeneous dispersion in the expansion chamber.
  • Powder sample settles on cell cultures.

More about VITROCELL PowderX

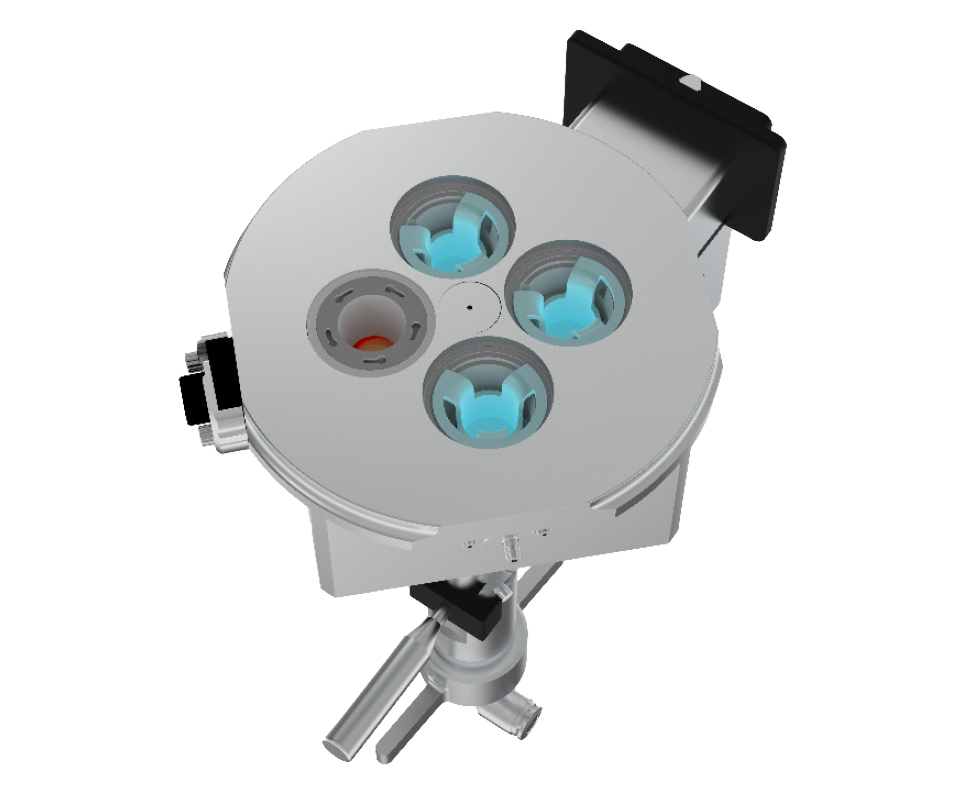

Base Module

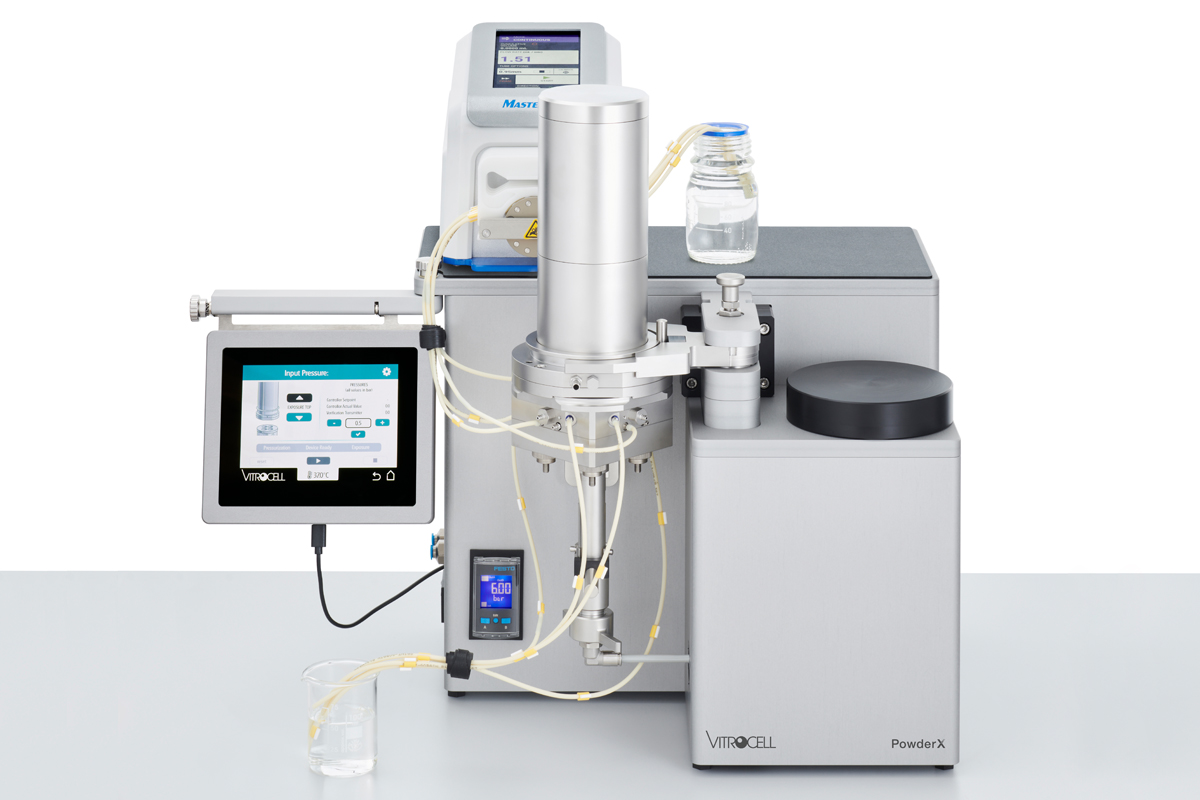

The base module is prepared for continuous or time-based sampling from the media compartment.

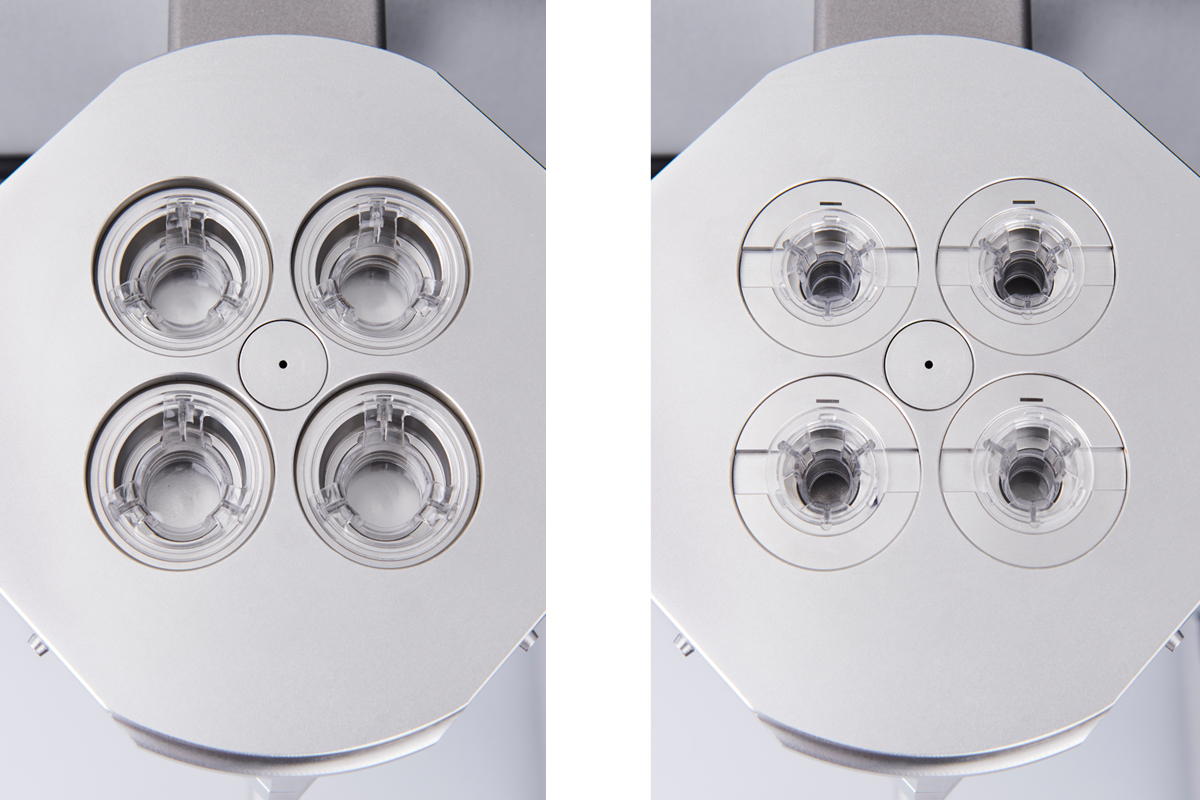

Base module houses 12- (left) or 24-well sized inserts (right).
All commercial brands are supported.

Loading System

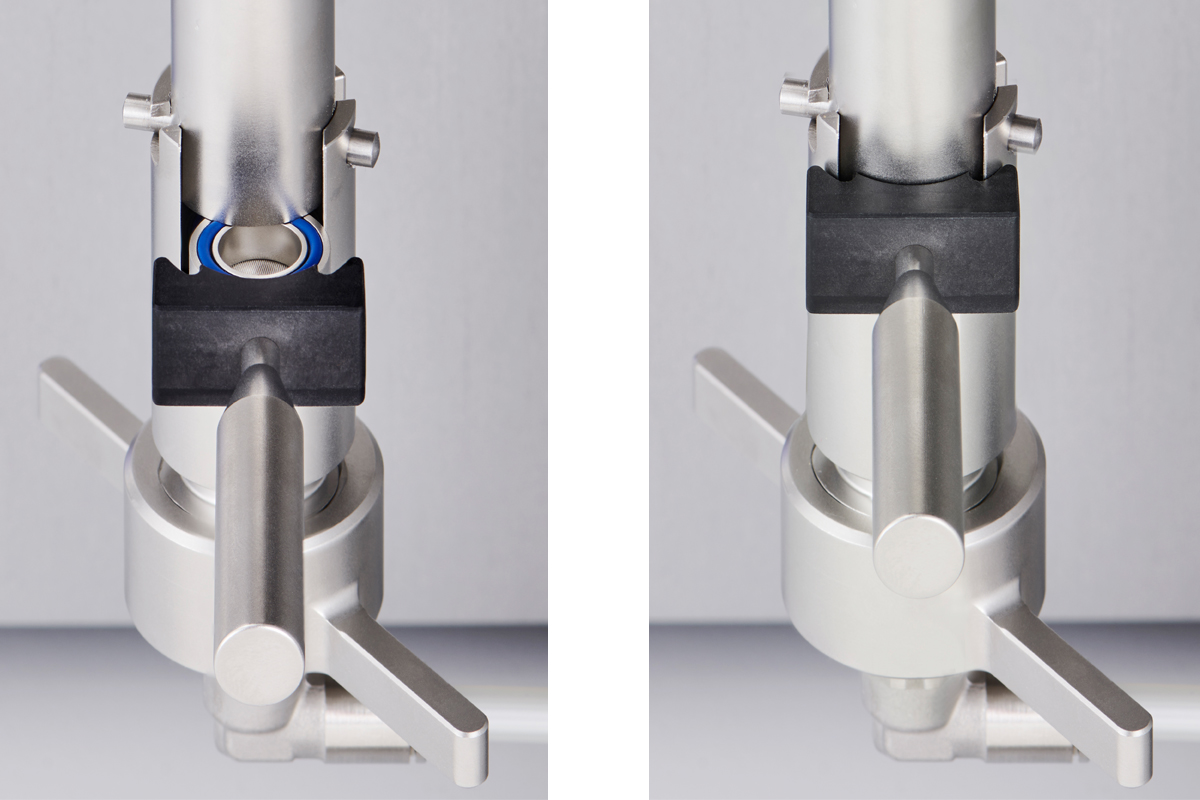

Quick-lock loading system open (left) and closed (right).

Expansion Chamber

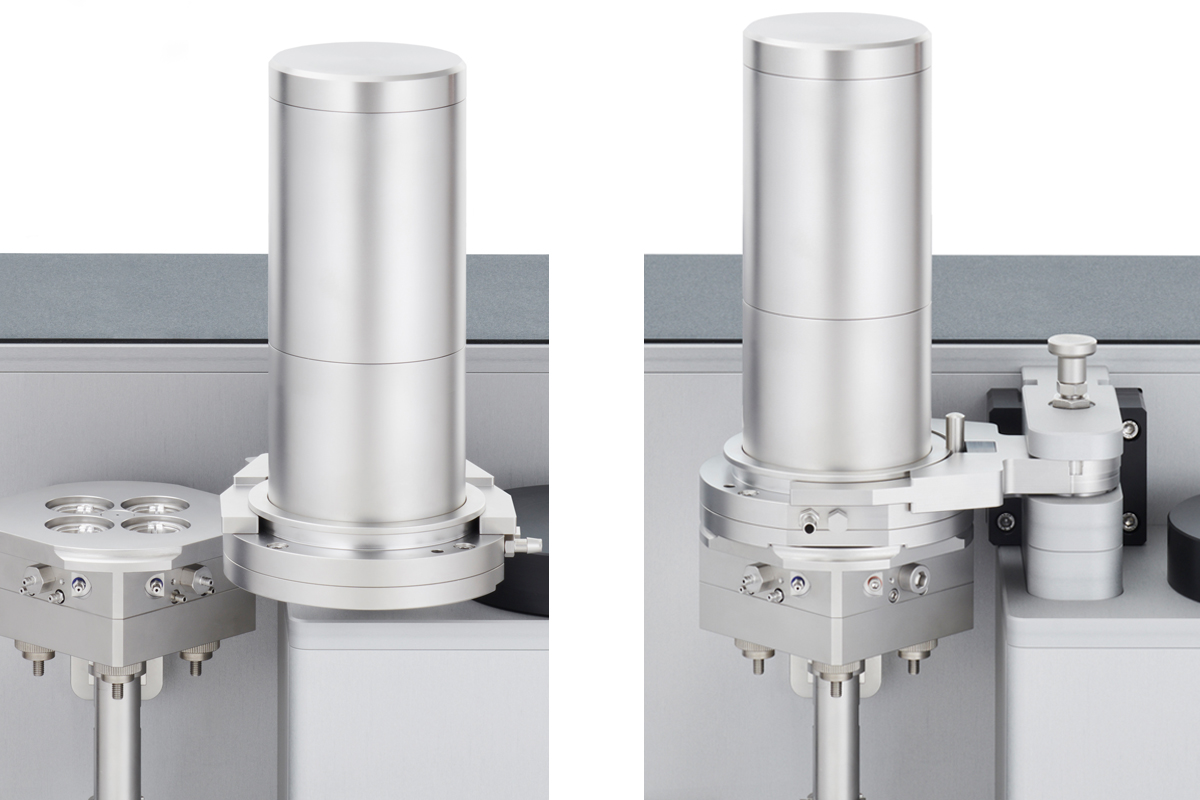

Medium size expansion chamber – standby (left) and sealed (right).

Discover more details in 3D-interaction

  • Look at the system from all angles by a left-click of your mouse
  • Click on the hotspots for further explanations
      Scan the QR-code with your mobile device to open the model and view it in AR.


      • Easy handling
      • Only small quantities of powder needed (5–100 mg)
      • No external airflow required
      • Exposure time < 30 minutes
      • Optional continuous media supply or media sampling
      • Optional magnetic stirring for media compartment
      • Intuitive user experience with touchscreen operation


      PowderX Function Principle
