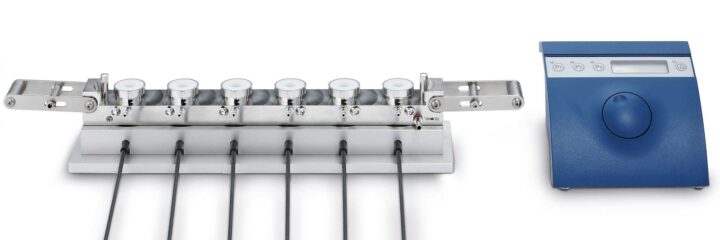

VITROCELL® Skin Module

Module with exposure surface area of 1 cm2.


The VITROCELL® Skin module is a unique system for the analysis of volatile compounds and the exposure of tissue to liquids. It has a 6-chamber capacity.

The base module and optional exposure tops are made of high-quality stainless steel. The unique tissue holders have been specifically designed to enable tight and reliable skin fixation. This module is a legitimate and superior alternative to Franz cells.

For automation of the sampling process please refer to the VITROCELL® Skin Autosampler.

More about VITROCELL Skin Module

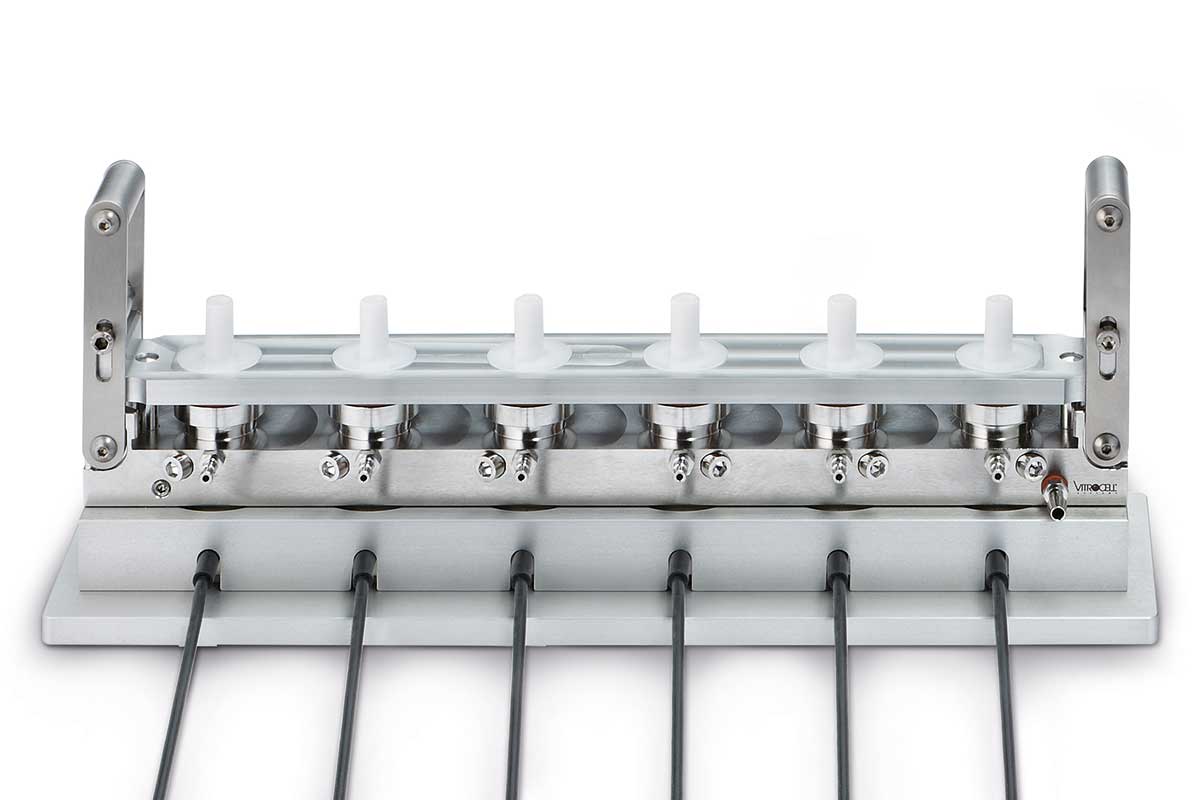

Base module including cover unit

The standard volume for the receptor fluid is 2.5 or 5.0 ml. The receptor fluid can be manually or automatically sampled by means of the VITROCELL® Skin Autosampler syringes. The module has a magnetic stirring capability for each individual compartment. The cover domes ensure a reduction in evaporation.

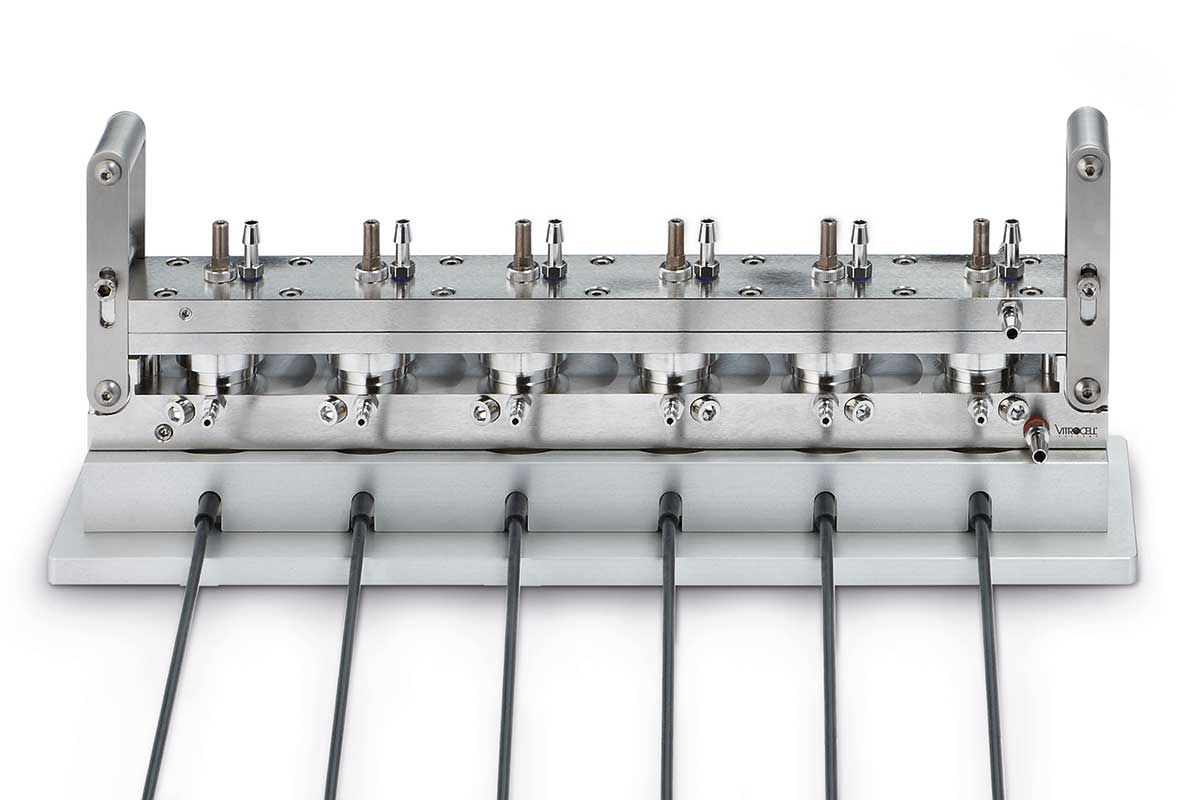

Base module including exposure top

The standard volume for the receptor fluid is 2.5 or 5.0 ml. The receptor fluid can be manually or automatically sampled by means of the VITROCELL® Skin Autosampler. The module has a magnetic stirring capability for each individual compartment.

The aerosol exposure top enables either a continuous or time-dependent exposure of the sample to gases, aerosols or complex mixtures.

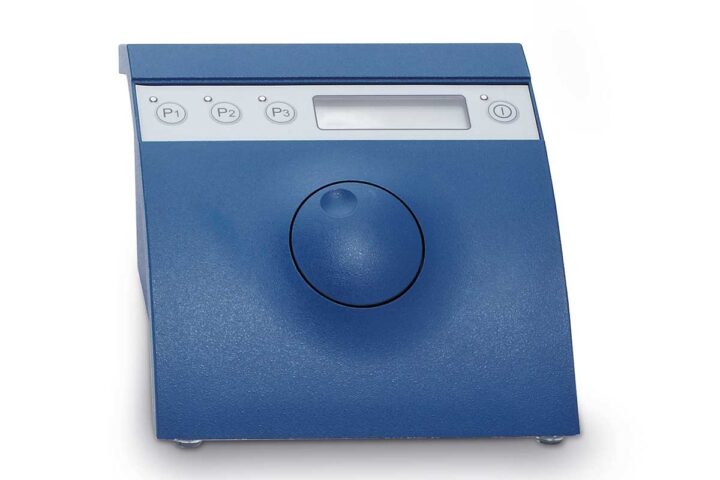

Controller for magnetic stirrers

For electronically controlled stirring speeds.

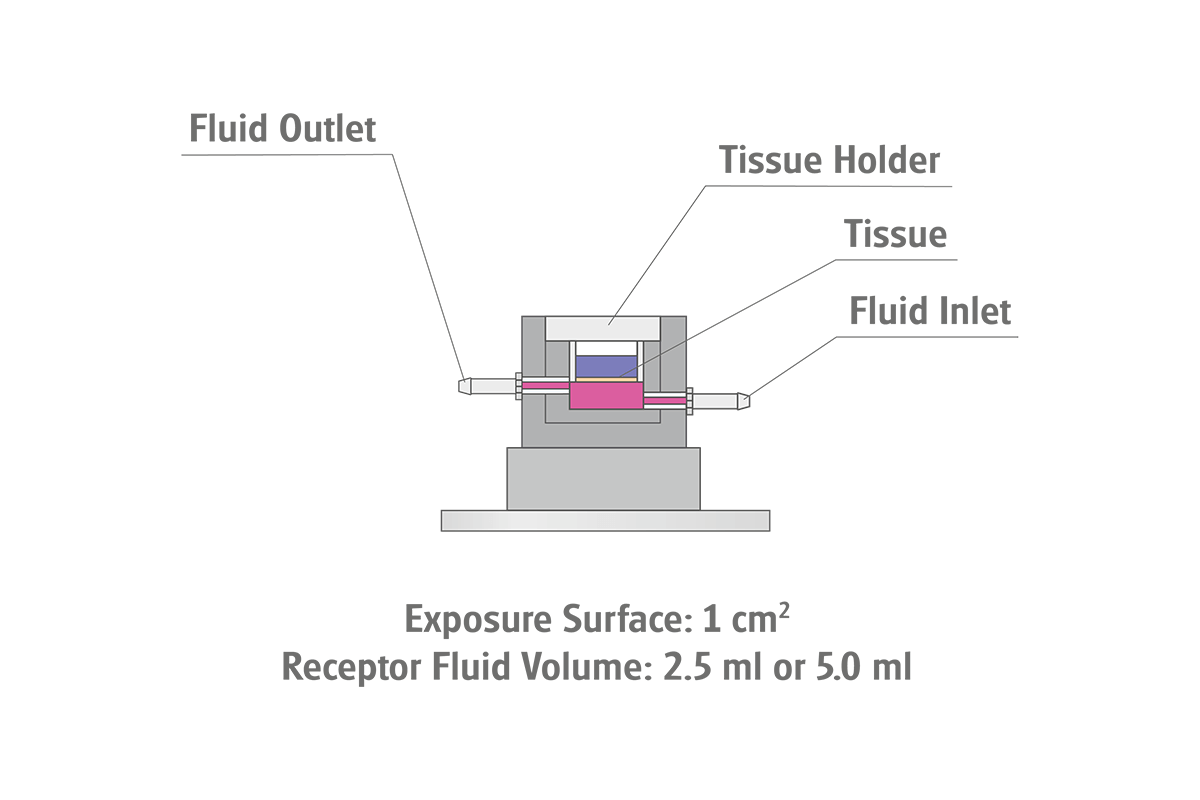

Skin module illustration

The skin module is used specifically for samples with smaller surfaces of approx. 1 cm2. Specifically designed holders ensure a tight and reliable fixation of skin samples.

Alternatively, cell culture inserts may be used.

Tissue holder with extraction tool

The specifically designed extraction tools ensure precision removal of the tissue holders.

The system is provided with a full set of holder counterparts.

Thickness ranges:

  • 500 μm
  • 500 - 1.000 μm
  • 1.000 - 1.500 μm
  • 1.500 - 2.000 μm

Features

  • Durable and long lasting design
  • Unique tissue holder
  • Permanent or static medium supply
  • Integrated water bath heating circuit
  • Suitable for diverse tissue thicknesses up to 2.000 μm
  • Option: exposure top for the analysis of volatile compounds
  • Option: magnetic stirrers
