VITROCELL® Cloud Alpha 96

96-well Air/Liquid Interface (ALI) exposure. For reliable high throughput testing of cell cultures.


The VITROCELL® Cloud Alpha 96 is our innovation and presents a great leap forward in automated exposure of cell cultures at the Air/Liquid Interface (ALI). It combines high throughput testing with ease of use. The development is based on the well-known and frequently published VITROCELL® Cloud formats (6-, 12- and 24-well). It’s functionality enables fully automated processes with an all-in-one control unit. Everyday experiments at the air/liquid interface have never been easier.

The new Cloud Alpha 96 series was developed as a result of numerous customer requests and is now capable to expose mammalian cell cultures in Corning® HTS Transwell® 96-Well Permeable Support Systems.

The Cloud system is suitable for nebulization of solutions and suspensions. Possible fields of application are screening of inhaled drugs, toxicity testing of inhaled substances such as chemicals or nanoparticles and virus research.



In response to the scientific need to expose in physiologically relevant conditions, the VITROCELL® Cloud Alpha exposure devices have been specifically designed to enable direct exposure of mammalian cells or tissue at the Air/Liquid Interface. Here the cell cultures are not covered with media as opposed to submerged conditions which cause an undesired inter­action of the formerly airborne substances with the culture media.

Cell systems cultivated on membrane inserts are exposed at the Air/Liquid Interface (ALI) so that the test substances are received directly. This approach allows for more credible and authentic results than by submerged exposure due to a closer replication of the human physiology.

Exposure at the Air/Liquid Interface

Air/Liquid Cultivation
and Exposure in Exposure Module

A: Direct and controlled ­exposure of test ­atmosphere to cells
B: Cells on membrane
C: Media below cells

More about VITROCELL Cloud Alpha 96

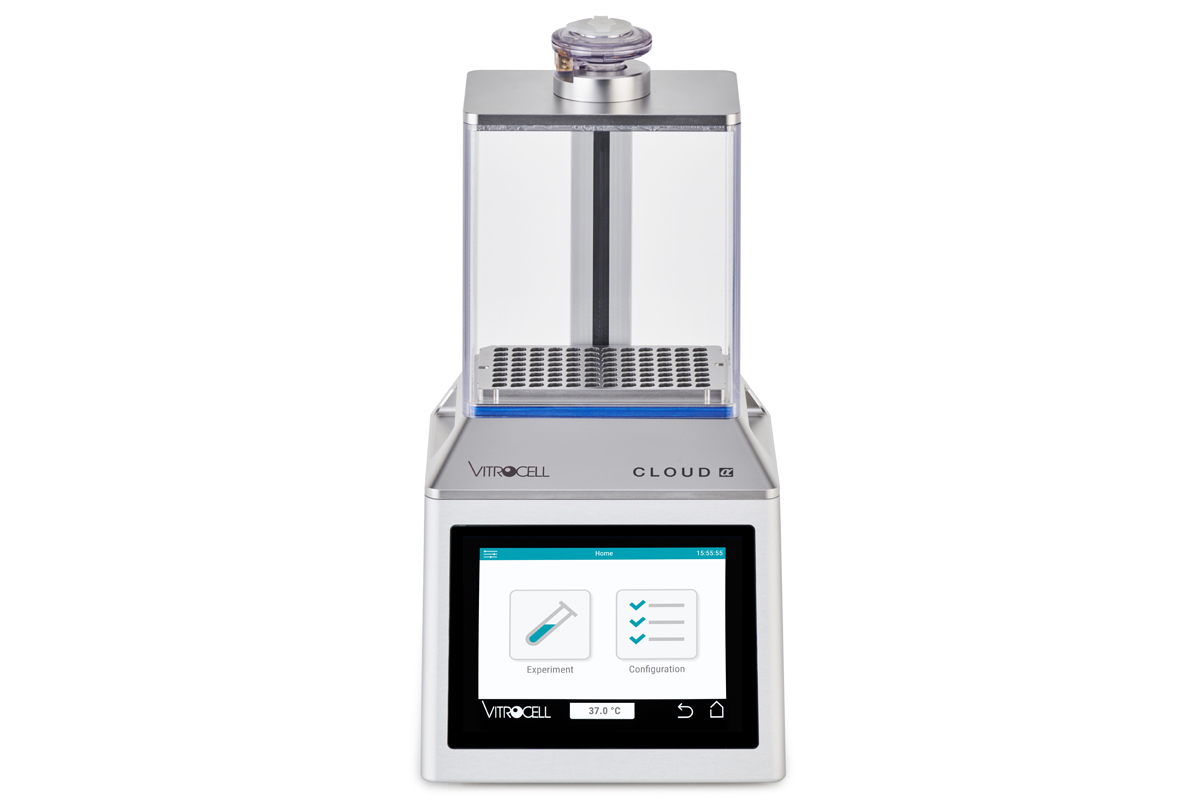

VITROCELL Cloud Alpha 96

VITROCELL Cloud Alpha 96 +

Cloud Alpha 96 + with integrated Quartz Crystal Microbalance (QCM)

Two Versions available

The system is available as Cloud Alpha 96 and Cloud Alpha 96+. The latter features an integrated Quartz Crystal Microbalance for online assessment of the deposited mass.

Choice of three types of nebulizers

The system comes with a choice of 3 types of vibrating mesh nebulizers having droplet MMAD ranges of 2.5 – 6.0 µm, 2.5 – 4.0 µm and 4.0 – 6.0 µm.

Recommended nebulisation volumes are 200 µl (Cloud Alpha 96) and 300 µl (Cloud Alpha 96+). So the device is particularly suitable for testing whenever small quantitities of testing materials are available.

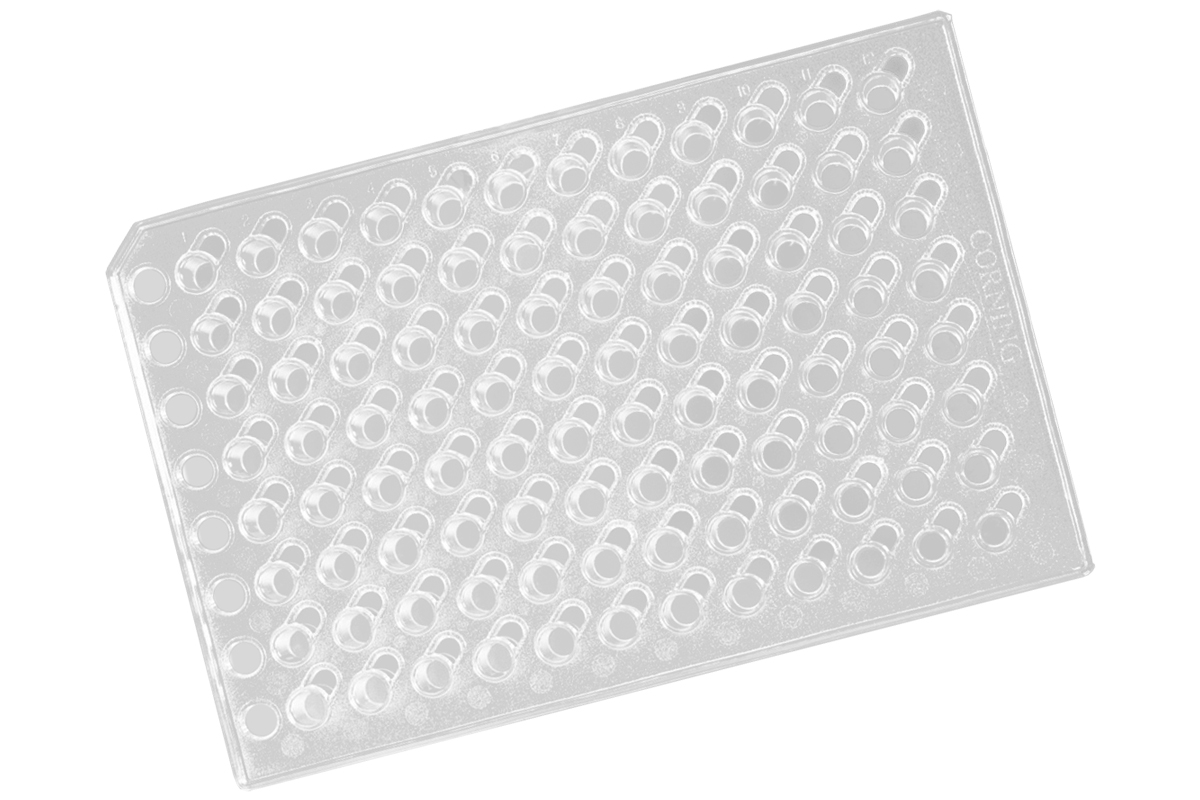

Corning HTS Transwell 96-well Plate

Dosimetry using Quartz Crystal Microbalance (QCM)

The QCM sensor is integrated in the Cloud Alpha 96+ exposure module. It is capable of measuring the deposited mass at a resolution of 10 nanogram/cm2 per second. Results are reported online by the VITROCELL Monitor software. Data is presented in graphs and stored in MS Excel®.

Discover more details in 3D-interaction

  • Look at the system from all angles by a left-click of your mouse
  • Click on the hotspots for further explanations
      Scan the QR-code with your mobile device to open the model and view it in AR.

      Features

      • Integrated controller for aerosol generator
      • Optional integrated microbalance controller
      • Defined experiment recipes
      • Automatisation of the experiment by nebulization time or by user-defined volume
      • Output rate database for nebulizers
      • Heating system
      • Optional PowerVent function: evacuation of potentially residual aerosols via vacuum pump
      • Designed for screening of inhaled drugs, toxicity testing of inhaled substances such as chemicals or nanoparticles and virus research

      Videos

      Cloud Alpha 96 – Function Principle

      Cloud Alpha – Family Overview
