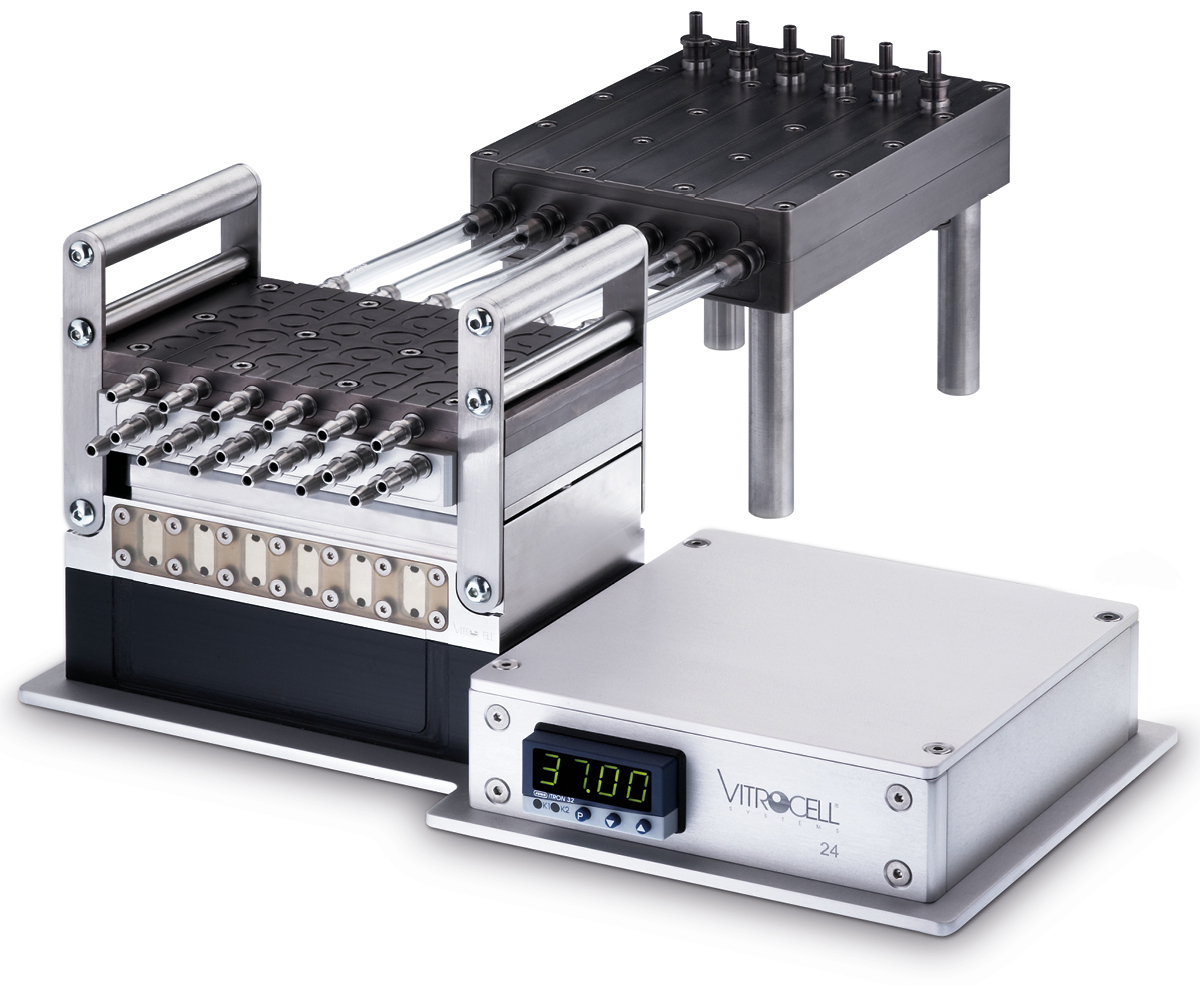

VITROCELL® 24 for 24-well sized inserts

VITROCELL® 24 cultivation and exposure system for 24-well sized cell culture inserts. Suitable for COSTAR®, FALCON® and ThinCert® brands. 6 dilutions and controlled guidance of the aerosol to 4 wells per dilution make the VITROCELL® an efficient and extremely powerful analysis tool.

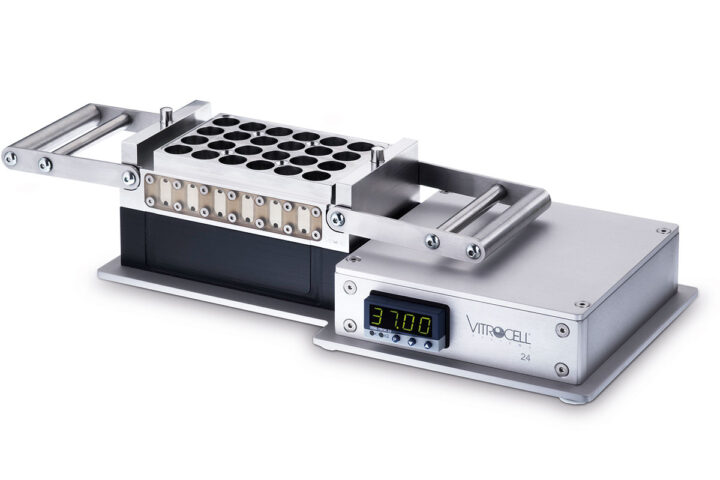

Base module

The base module is made of electropolished stainless steel. An optional transparent control window facilitates the external monitoring of media levels and may be easily removed from the integrated heating base. Temperature can be programmed individually.

The module has been designed for 24-cell culture inserts (24-well size).

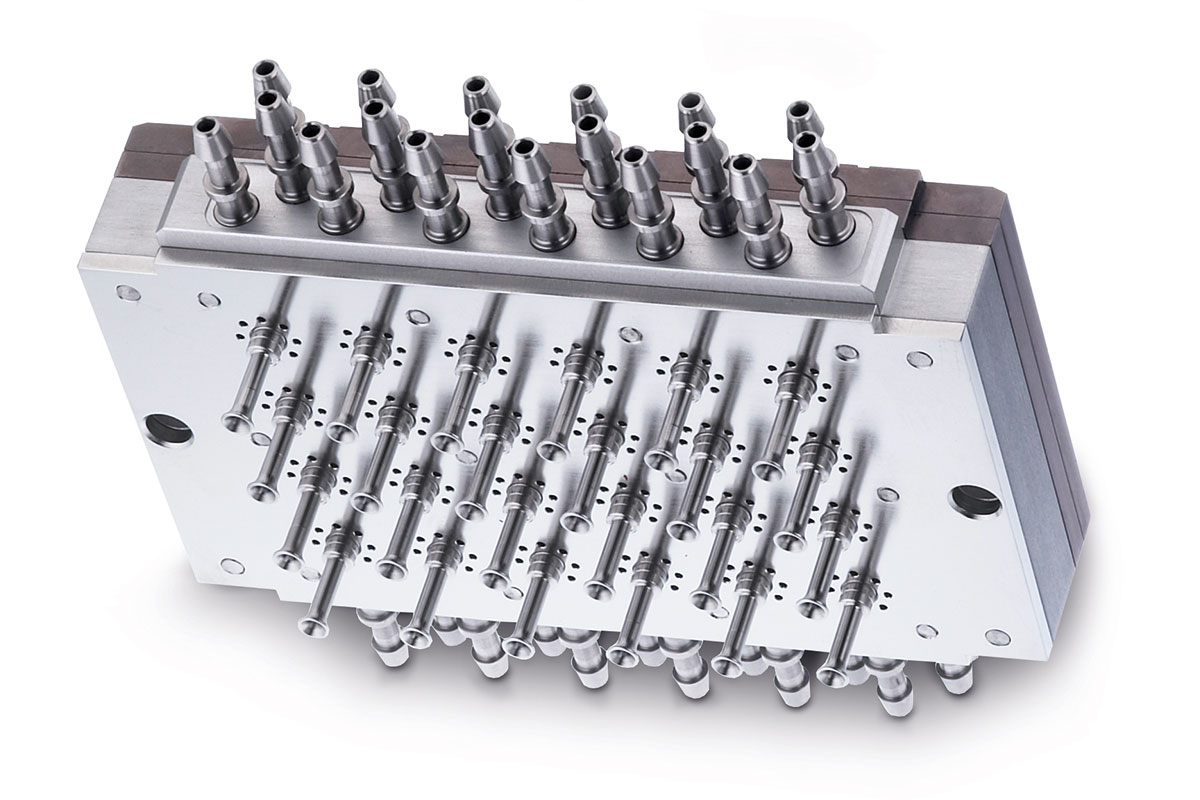

Aerosol exposure top

Special sealing and connection mechanisms guarantee a hermetic connection of the base module with the aerosol exposure top.

The aerosol exposure top guides the test atmosphere at an individually controlled flow rate to each cell culture membrane.

Controlled inlet flow

Specifically designed inlets for optimal distribution and particle deposition.

More information about the VITROCELL inlet flow principle in our introduction

Features

Supplied with dynamic double-jet dilution system for 6 dilutions with 4 replicates
24-wells for COSTAR®, FALCON® and ThinCert® inserts
Single supply to each cell culture membrane
Base module and aerosol exposure top are autoclavable
Integrated, sensor-controlled heating plate
Option: Control window for monitoring culture medium levels
